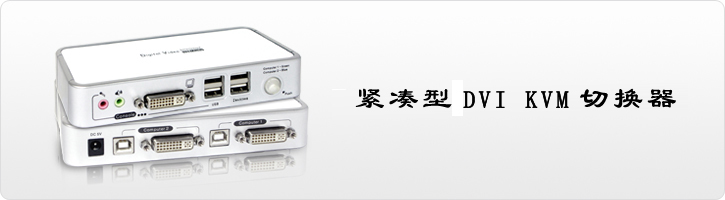

紧凑型DVI KVM切换器

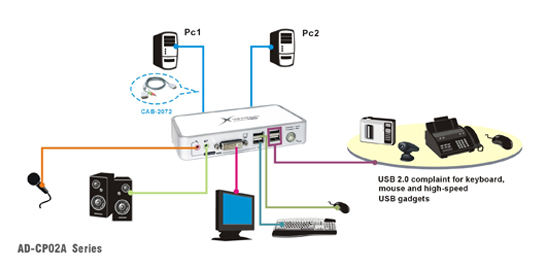

This Compact DVI KVM Switch series is an attempt to synthesize a stylish element with best KVM switching features into a small desktop gadget that allows users to control and switch between two desktop USB computers. Optionally available for some advanced models are the All-Time DDC Emulation* technology and the latest True Transparent USB (TTU) Emulation** technology to factor in a new user experience that eradicates video glitches due to DDC signal disruption, and makes no compromise to any advanced keyboard and mouse functionalities. There are two optional extra USB 2.0 device ports available for high-speed USB device sharing. As a product that combines these good technologies, these Compact DVI KVM Switches can be your handy helpmate anytime.


* All-Time DDC Emulation technology is an emulation technology that enables the KVM to emulate the presence of a specific monitor with its proper DDC data set on a KVM port, not only when that KVM port is switched on as the active port, but also when it is switched off, so that, the connected computer will believe there is always a monitor present at all time, hence no interruption to the DDC signaling communication.

** True Transparent USB (TTU) Emulation technology is our latest keyboard and mouse emulation technology embodied in an ASIC chip that enables the KVM switch to fully detect, copy, save and emulate therein an exact identity of any advanced keyboard and mouse. Its advantage is that users can enjoy 100% of all its functional features that are only available by 100% driver support provided by the state-of-the-art TTU technology!



At a Glance

Model No. AD-CP02A AD-EP04A UHD-CP02A
Ports 2 4 2
Interface Keyboard, Mouse USB USB USB
Video DVI-I DVI-I DVI-I
Audio/Mic Yes Yes Yes
Digital Display Resolution 1920x1200 1920x1200 1920x1200
Analog Display Resolution 2048x1536 2048x1536 2048x1536
USB Hub x2 x4 x4
TTU Yes Yes 　

紧凑型DVI KVM切换器 总览

AD-CP02A
AD-CP02A
  • 2端口DVI USB紧凑型 KVM切换器/音频，麦克风，放大功能；集线器
AD-EP04A
AD-EP04A
  • 4端口DVI USB紧凑型 KVM切换器/音频，麦克风，放大功能；集线器
UHD-CP02A
UHD-CP02A
  • 2端口DVI USB紧凑型 KVM切换器/音频，麦克风，放大功能；集线器
Specifications
型号
产品说明
连接端口数
控制端口数
控制端键盘界面
控制端鼠标界面
控制端视频界面
控制端音频(喇叭/麥克風)界面
控制端USB端口
被控端键盘界面
被控端鼠标界面
被控端视频接口
被控端音频(喇叭/麥克風)界面
电脑切换选择
电脑LED灯
类比视频分辨率
数字视频分辨率
键盘及鼠标信号模拟
操作溫度
儲存溫度
湿度
電源型式
电源变压器
重量
尺寸(長×寬×高 )
安規認證
线材型号
AD-CP02A AD-EP04A UHD-CP02A
2端口DVI USB紧凑型 KVM切换器/音频，麦克风，放大功能；集线器  4端口DVI USB紧凑型 KVM切换器/音频，麦克风，放大功能；集线器  2端口DVI USB紧凑型 KVM切换器/音频，麦克风，放大功能；集线器
2  4  2
1  1  1
USB 型 A 母头  USB 型 A 母头  USB 型 A 母头
USB 型 A 母头  USB 型 A 母头  USB 型 A 母头
DVI-I 母头  DVI-I 母头  DVI-I 母头
2 × 3.5毫米音频/麦克风插孔母头  2 × 3.5毫米音频/麦克风插孔母头  2 × 3.5毫米音频/麦克风插孔母头
2 xUSB 2.0 型 A  4 xUSB 2.0 型 A  4 xUSB 2.0 型 A
2 xUSB 型 B 母头  4 xUSB 型 B 母头  2 xUSB 型 B 母头
通过电脑键盘连接器  通过电脑键盘连接器  通过电脑键盘连接器
2 x DVI-I 母头  4 x DVI-I 母头  2 x DVI-I 母头
通过视频连接器  通过视频连接器  通过视频连接器
按钮/热键  按钮/热键  按钮/热键/切换软件（WIN / MAC）
1 (绿 / 蓝 )  4 x 蓝  2 x 蓝
2048 x 1536  2048 x 1536  2048 x 1536
1920 x 1200  1920 x 1200  1920 x 1200
支持（USB真实通透技术）  支持（USB真实通透技术）  支持
0 ~ 40°C  0 ~ 40°C  0 ~ 40°C
-20 ~ 60°C  -20 ~ 60°C  -20 ~ 60°C
0〜90％RH，非冷凝  0〜90％RH，非冷凝  0〜90％RH，非冷凝
2.5毫米电源插座  2.5毫米电源插座  2.5毫米电源插座
DC 5V/2A  DC 5V/2A  DC 5V/2A
170g  470g  450g
154 x 65 x 27mm  262 x 101 x 45mm  262 x 101 x 45mm
FCC, CE  FCC, CE  FCC, CE
  TBA  CAB-2072, CAB-2008
